Warmhaus Boiler Spares Diagrams

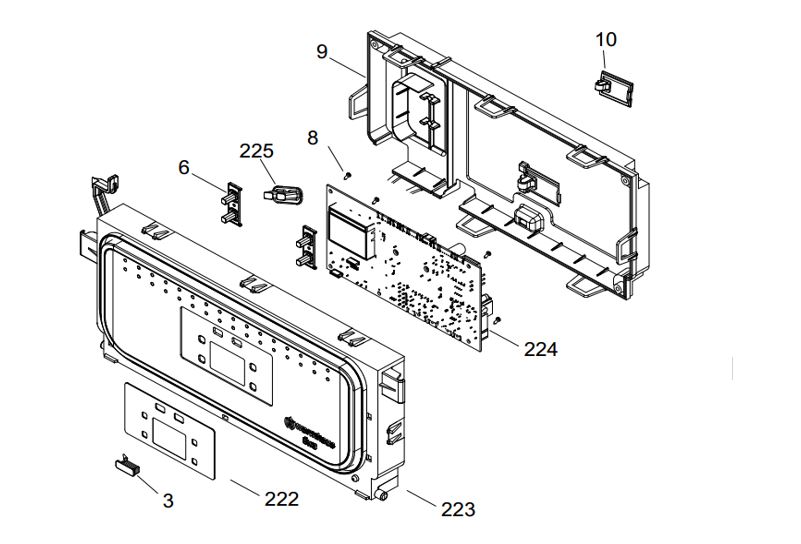

EWA UK1

View No Part Code Part Name
3 15311016000005 Easy Access Service Cap
6 15311016000011 Binary Button Group
8 15311019000038 3,5x6,5 Screw
9 15311016000022 PCB Box Rear Panel
10 15311016000021 Service Port Inner Plastic
222 15311016000031 Ewa Condens. Front Plastic Serigraphy Panel
223 15311016000033 PCB Box Front Panel
224 15311015000019 Ewa Condens. PCB -HACG30-CK03
225 15311016000025 Triple Button Group

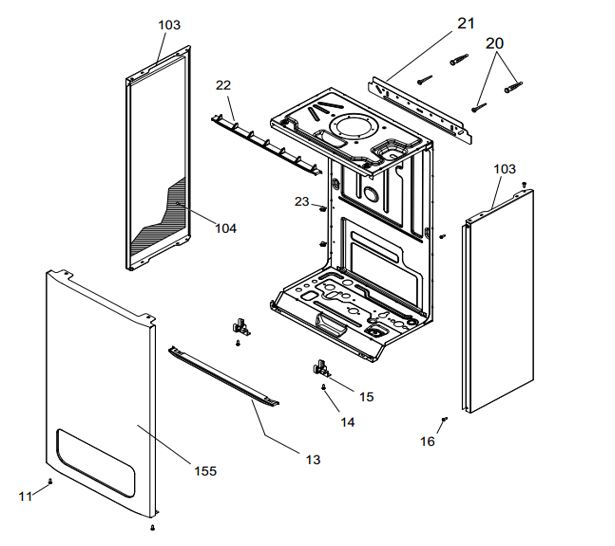

EWA UK2

View No Part Code Part Name
11 15311019000046 M4,2x9,5 Screw
13 15311019000020 Short  Edge Lower Gasket
14 15311019000042 3,5x9,5 Screw
15 15311016000004 Hinge
16 15311019000004 Flat Nose Bolt 4,2x7,5mm (Black)
20 15311019000006 Mounting Set (Screw,Dowel)
21 15211005000002 Hanging Bracket
22 15311019000051 Short Edge Upper Gasket
23 15311019000002 Cable Holder
103 15211001000015 Side Panel (Condens.)
104 15311006000029 Side Panel Insulation (Condens.)
155 15211001000017 Front Panel - Std. (Condens.)

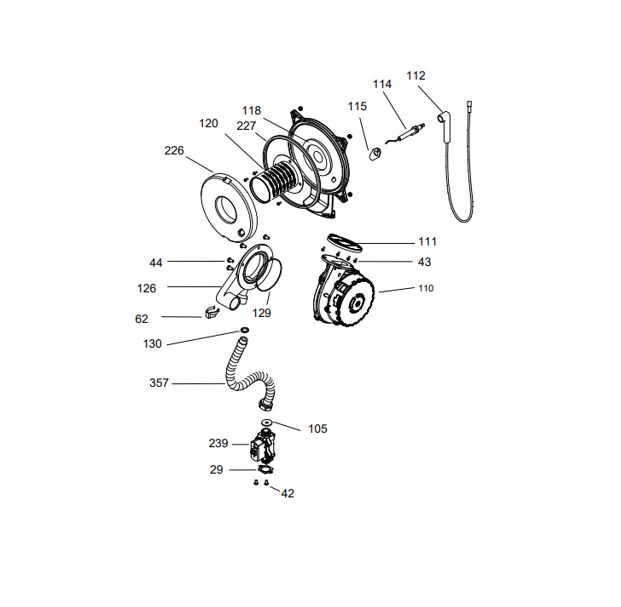

EWA UK3

View No Part Code Part Name
29 15311019000021 Gas Valve Gasket
42 15311019000032 M5x10 Screw
43 15311019000034 M5x15 Screw
44 15311019000033 M6x10 Screw
62 15311018000011 Pipe Connection Clip
105 15311002000002 Nozzle - 5,6mm  (24kW Condens.)
110 15311003000004 Fan Group - Bertelli  (24-28-33kW Condens.)
111 15311019000017 Fan-Heat Exc. Gasget
112 15311017000013 Ignition Cable
114 15311660500019 Condcell Ignition Electrode (24kW…65kW)
115 15311660500009 Ignition Electrode Gasket (Condens.)
118 15311660500005 Burner Gasket (Condens.)
120 15311660500004 Condcell Burner 24kw
126 15311002000001 Gas Air Mixer 24kw
129 15311019000014 Gas Air Mixer - Fan O-ring 63x3mm Black
130 15311019000015 Gas Air Mixer - Gas Flex Pipe O-ring 13x2,5 Yellow
357 15311018000052 Gas Flex Pipe (Condens.)
226 15311006000060 D2-Combustion Cell Insulation Gasket
227 15311019000156 D2-Condcell Combustion Cell Insulation
239 15311008000002 Gas Valve (Black)

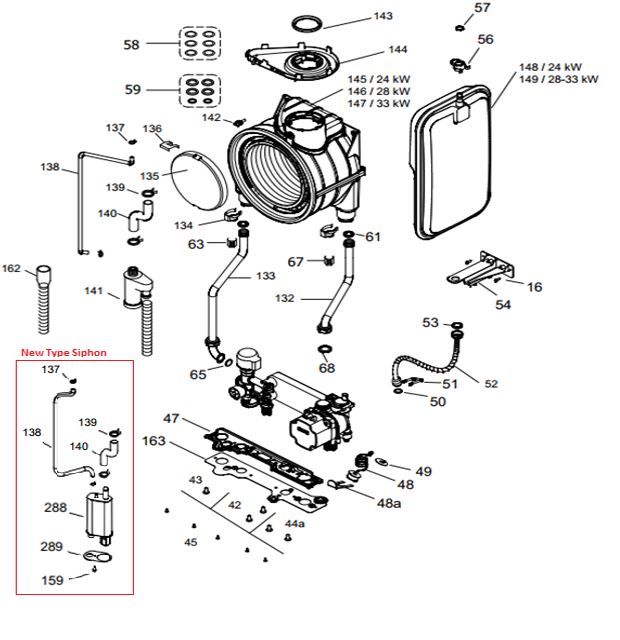

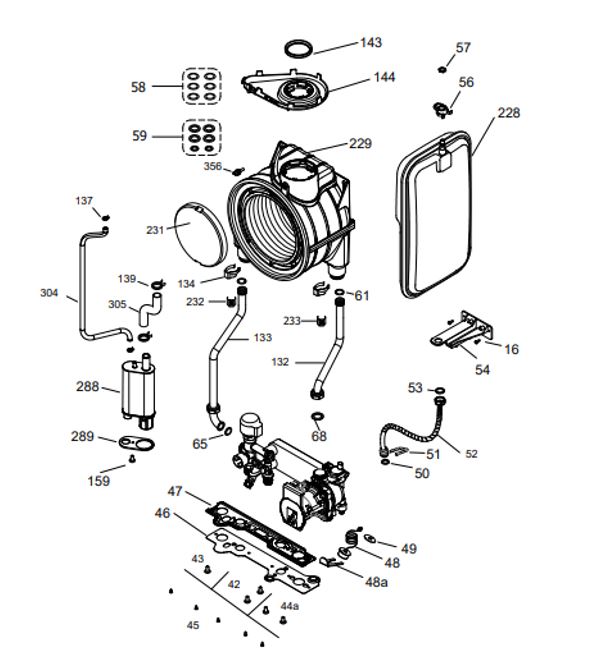

EWA UK4

View No Part Code Part Name
16 15311019000004 Flat Nose Bolt 4,2x7,5mm (Black)
42 15311019000032 M5x10 Screw
43 15311019000034 M5x15 Screw
44a 15311019000092 Pump Screw H60x13 EJOT
45 15311019000049 4,2X9,5 Screw
46 15311019000023 Bottom Shaft Gasket
47 15211005000006 Hydroblock Chassis Sheet
48 15311011000006 Manometer
48a 15311019000029 Manometer Connection Clip
49 15311006000047 Manometer Gasket
50 15311009000012 Expansion Vessel Flex O-ring 14x3
51 15311009000008 Expansion Vessel Clip 3x20x32
52 15311018000010 Expansion Vessel Flex Pipe 3/8''  21cm
53 15311019000010 Expansion Vessel Outlet Gasket (3/8"-14,5x9x1,5mm)
54 15311016000014 Expansion Vessel Bottom Fitting
56 15311016000012 Expansion Vessel Fitting
57 15311019000007 R 1/4 Lock Nut
58 15211001000022 O-Ring Group (24-28-33kW)
59 15211001000021 Gasket Group (24-28-33kW)
61 15311019000016 Heat Exchanger O-Ring 17,86x2,62mm
65 15311019000009 Connection Gasket
68 15311019000008 Klingerite Gasket (1 "- 30x21x2mm)
132 15311018000007 CH Return Pipe (Condens.)
133 15311018000005 CH Flow Pipe (Condens.)
134 15311018000003 Pipe Connection Clip (Condens.)
137 15311019000054 Condensation Pan Clamp
139 15311019000001 Heat Exc. Condensation Hose Clamp
356 15311011000009 NTC-Flue Sensor
143 15311019000018 Flue Adapter Gasket
144 15311016000006 Condensation Pan
159 15311019000058 Timer Screw
228 15311023000009 8 Lt. Expansion Vessel (Onaysan)
231 15311660500072 D2-Condcell Rear Insulation
232 15311011000016 CH-Flow+Limit Sensor Duplex NTC
233 15311011000017 CH Return Sensor NTC
288 15311004000003 WH Condensation Siphon
289 15311006000062 Siphon Lower Insulation
304 15311018000043 Condensation Pan Hose (New Type)
305 15311018000044 Heat Exc. Condensation Hose (New Type)

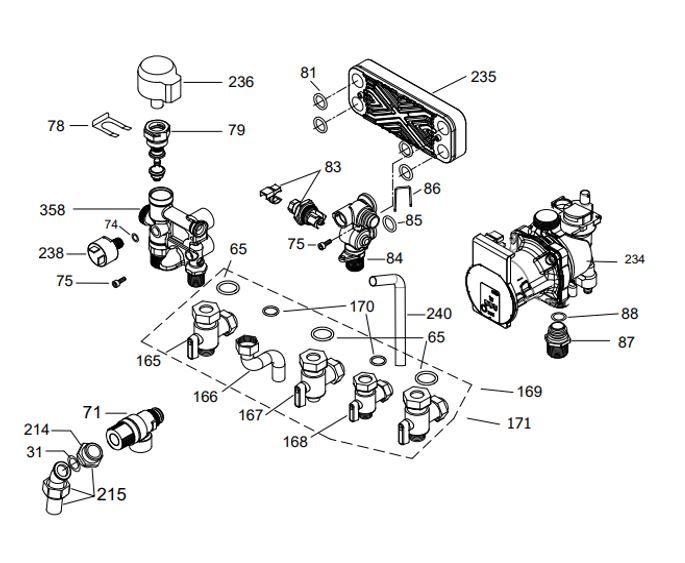

EWA UK5

View No Part Code Part Name
31 15311019000011 Klingerite Gasket (18x12,5x3mm)
65 15311019000009 Connection Gasket
71 15311009000004 Safety Valve (3 Bar)
74 15311019000012 Gasket 1/4"-10,5x6x2mm
75 15311019000031 M5x22 Allen Head Screw
78 15311009000007 Clip  (3-Way Valve)
79 15311660500000 3-Way Valve Inner Kit
81 15311009000011 Plate Heat Exchanger O-ring 18,64 x3,53
83 15311660500011 Water Flow Sensor Group
84 15311009000002 Inlet Manifold
85 15311009000013 Inlet Manifold - Pump Connetion O-Ring 17x4
86 15311009000009 Inlet Manifold U Clip
87 15311009000003 Pump Connection Nippel
88 15311009000014 Nipple O-ring 20,29 x 2,62mm
358 1521101047 Outlet Manifold - Without Filling Tap (UK)
165 15311009000017 CH Flow Connection- ¾ "x 22 Ball Valve (Red)
166 15311009000019 DHW Flow Connection Pipe
167 15311009000020 Gas Inlet Connection - ¾ "x 22 Ball Valve (Yellow)
168 15311009000018 DWH Return Connection - ½ "x 15 Ball Valve
169 15311009000016 CH Return Connection - ¾ "x 22 Ball Valve (Blue)
170 15311019000071 DHW Gasket (UK)
171 1521104002 Valve Set (UK)
214 15311660500030 Safety Valve (3 Bar) Outlet Nippel (UK)
215 15311018000024 Safety Valve Drain Group (UK)
235 15311024000019 Plate Heat Exchanger (10 Plates-Condevo)
236 15311007000004 3-Way Valve Motor (SHINEUI)
238 15311011000018 Water Pressure Switch

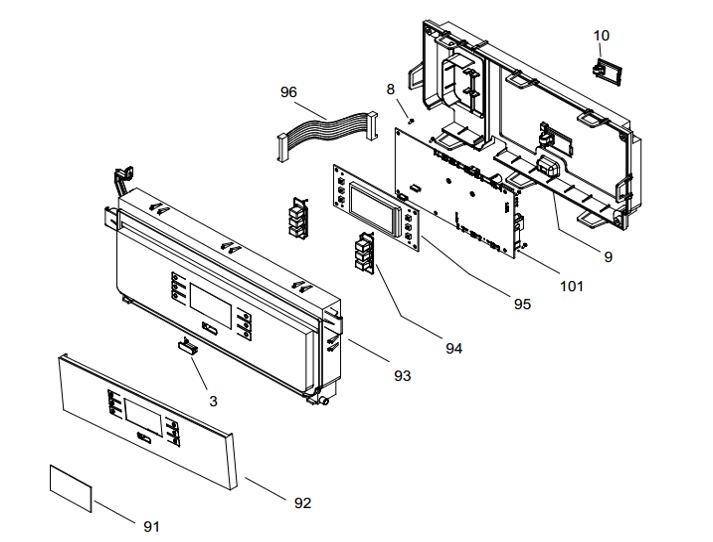

ENERWA PLUS UK 1

View No Part Code Part Name
3 15311016000005 Easy Access Service Cap
8 15311019000038 3,5x6,5 Screw
9 15311016000022 PCB Box Rear Panel
10 15311016000021 Service Port Inner Plastic
94 15311016000010 Triple Button Group
95 15311015000007 Interface PCB (Plus Mod.)
101 15311015000006 PCB/Without LCD  - Plus (Condens.)

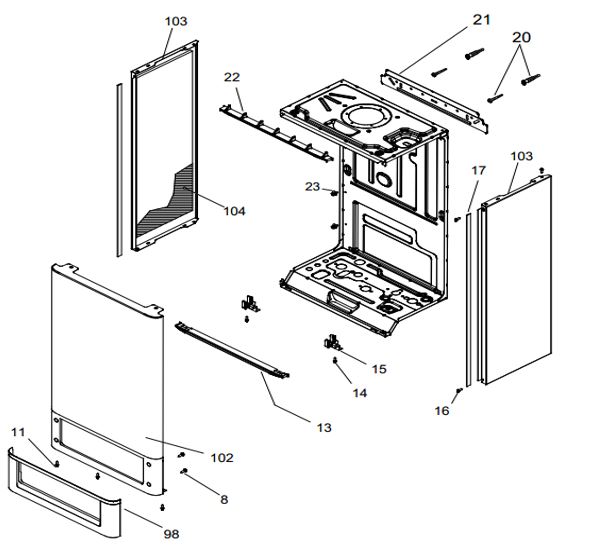

ENERWA PLUS UK 2

View No Part Code Part Name
8 15311019000038 3,5x6,5 Screw
11 15311019000046 M4,2x9,5 Screw
13 15311019000020 Short  Edge Lower Gasket
14 15311019000042 3,5x9,5 Screw
15 15311016000004 Hinge
16 15311019000004 Flat Nose Bolt 4,2x7,5mm (Black)
20 15311019000006 Mounting Set (Screw,Dowel)
22 15311019000051 Short Edge Upper Gasket
23 15311019000002 Cable Holder
103 15211001000015 Side Panel (Condens.)
104 15311006000029 Side Panel Insulation (Condens.)

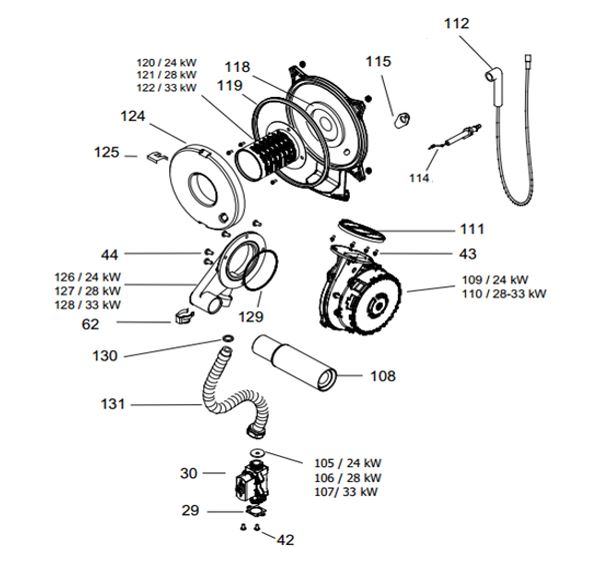

ENERWA PLUS UK 3



View No Part Code Part Name
29 15311019000021 Gas Valve Gasket
30 15311008000002 Gas Valve
42 15311019000032 M5x10 Screw
43 15311019000034 M5x15 Screw
44 15311019000033 M6x10 Screw
62 15311018000011 Pipe Connection Clip
105 15311002000002 Nozzle - 5,6mm  (24kW Condens.)
109 15311003000002 Fan Group - EBM  (24kW Condens.)
110 15311003000004 Fan Group - Bertelli  (24-28-33kW Condens.)
111 15311019000017 Fan-Heat Exc. Gasget
112 15311017000013 Ignition Cable
114 15311660500019 Condcell Ignition Electrode (24kW…65kW)
115 15311660500009 Ignition Electrode Gasket (Condens.)
118 15311660500005 Burner Gasket (Condens.)
119 15311660500008 Combustion Chamber Insulation Gasket
120 15311660500004 Condcell Burner 24kw
126 15311002000001 Gas Air Mixer 24kw
129 15311019000014 Gas Air Mixer - Fan O-ring 63x3mm Black
130 15311019000015 Gas Air Mixer - Gas Flex Pipe O-ring 13x2,5 Yellow

ENERWA PLUS UK 4

View No Part Code Part Name
16 15311019000004 Flat Nose Bolt 4,2x7,5mm (Black)
42 15311019000032 M5x10 Screw
43 15311019000034 M5x15 Screw
44a 15311019000092 Pump Screw H60x13 EJOT
45 15311019000049 4,2X9,5 Screw
48 15311011000006 Manometer
48a 15311019000029 Manometer Connection Clip
49 15311006000047 Manometer Gasket
50 15311009000012 Expansion Vessel Flex O-ring 14x3
51 15311009000008 Expansion Vessel Clip 3x20x32
52 15311018000010 Expansion Vessel Flex Pipe 3/8''  21cm
53 15311019000010 Expansion Vessel Outlet Gasket (3/8"-14,5x9x1,5mm)
54 15311016000014 Expansion Vessel Bottom Fitting
56 15311016000012 Expansion Vessel Fitting
57 15311019000007 R 1/4 Lock Nut
58 15211001000022 O-Ring Group (24-28-33kW)
59 15211001000021 Gasket Group (24-28-33kW)
61 15311019000016 Heat Exchanger O-Ring 17,86x2,62mm
63 15311011000002 CH-Flow+Limit Sensor Duplex NTC
65 15311019000009 Connection Gasket
67 15311011000004 CH Return Sensor NTC
68 15311019000008 Klingerite Gasket (1 "- 30x21x2mm)
132 15311018000007 CH Return Pipe (Condens.)
133 15311018000005 CH Flow Pipe (Condens.)
134 15311018000003 Pipe Connection Clip (Condens.)
137 15311019000054 Condensation Pan Clamp
139 15311019000001 Heat Exc. Condensation Hose Clamp
141 15311004000001 Condensation Siphon
142 15311011000005 NTC-Flue Sensor
143 15311019000018 Flue Adapter Gasket
144 15311016000006 Condensation Pan
145 15311024000012 Heat Exchanger 24kW (Condens.)
146 15311024000003 Heat Exchanger 28kW (Condens.)
148 15311023000004 8 Lt. Expansion Vessel
149 15311023000002 10 Lt. Expansion Vessel
159 15311019000058 Screw
288 15311004000003 WH Condensation Siphon
289 15311006000062 Siphon Lower Insulation

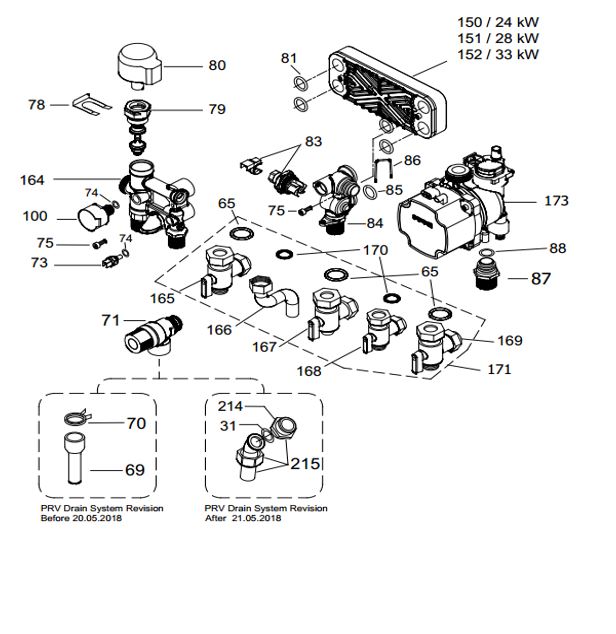

ENERWA PLUS UK 5

31 15311019000011 Klingerite Gasket (18x12,5x3mm)
65 15311019000009 Connection Gasket
71 15311009000004 Safety Valve (3 Bar)
73 15311011000003 DHW Sensor NTC
74 15311019000012 Gasket 1/4"-10,5x6x2mm
75 15311019000031 M5x22 Allen Head Screw
78 15311009000007 Clip  (3-Way Valve)
79 15311660500000 3-Way Valve Inner Kit
80 15311007000001 3-Way Valve Motor
81 15311009000011 Plate Heat Exchanger O-ring 18,64 x3,53
83 15311660500011 Water Flow Sensor Group
84 15311009000002 Inlet Manifold
85 15311009000013 Inlet Manifold - Pump Connetion O-Ring 17x4
86 15311009000009 Inlet Manifold U Clip
87 15311009000003 Pump Connection Nippel
88 15311009000014 Nipple O-ring 20,29 x 2,62mm
100 15311011000007 Water Pressure Sensor
151 15311024000007 Plate Heat Exchanger (16 Plates)
165 15311009000017 CH Flow Connection- ¾ "x 22 Ball Valve (Red)
166 15311009000019 DHW Flow Connection Pipe
167 15311009000020 Gas Inlet Connection - ¾ "x 22 Ball Valve (Yellow)
168 15311009000018 DWH Return Connection - ½ "x 15 Ball Valve
169 15311009000016 CH Return Connection - ¾ "x 22 Ball Valve (Blue)
170 15311019000071 DHW Gasket (UK)
171 1521104002 Valve Set (UK)
173 15311010000004 Modulating Pump Grundfos UPM3  15-70
214 15311660500030 Safety Valve (3 Bar) Outlet Nippel (UK)
215 15311018000024 Safety Valve Drain Group (UK)
