• For testing domestic gas & oil boilers
• Flue gas, tightness & let-by, differential temperature & pressure, ambient CO, & draught measurent menus
• 5 year sensors for reduced service costs
• 8,000 ppm CO sensor with H2 compensation and automatic pump shut off to prevent over-ranging
• EN50379-1/3 and BS7967 compliant
• 20% H2 ready
• Bluetooth USB dapter supplied for connectivity to testo Smart Probes
• Kit includes 2 x pipe temperature clamp probes (wired) for flow/return temperature measurements
• Kit includes pressure connection adapter set for gas pressure testing

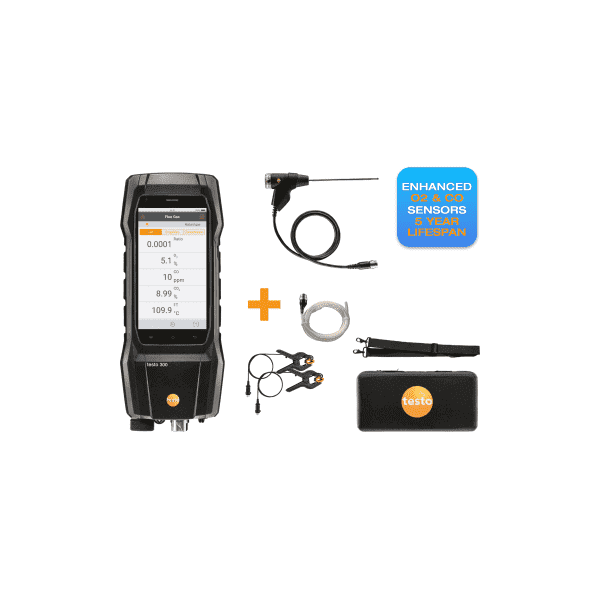

With this kit, you will be equipped for the most important measurements involving domestic heating systems alongside flow/return temperature measurements and gas pressure testing: the testo 300+ flue gas analyser is supplied with 5 year lifespan O2 and CO sensor (8,000 ppm H2 compensated), basic flue gas probe, pressure test accesory kit, 2 x wired pipe temperature clamp probes,testo Bluetooth® Connector, instrument carry case, AC USB power supply.
testo 300+ Flue gas analyser Advanced kit
- Designed for domestic boiler service, 8,000ppm H2 compensated CO sensor and O2 sensor fitted with 5 year lifespan
- Wired temperature clamps allow for flow/return temperature measurements
- Efficient, wireless parallel measurement of up to four testo Smart Probes simultaneously (smart probes not supplied)
- Practical second screen function and easy data integration into user-specific software via QR code output
testo 300+ flue gas analyser with O2 and CO sensor up to 8,000 ppm (0633 3004 40)
USB mains unit, including cable (0554 1105)
Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax. 500°C; 1.5 m hose; including cone for fixing (0600 9740)
testo bluetooth connector (0554 3004)
2 x clamp probes (NTC) for temperature measurements on pipes (Ø 6-35 mm) with fixed cable (cable length 1.4 m) (0615 5505)
Pressure connection kit with 2 silicone hoses (Ø 6 mm and Ø 4 mm, each 1 m long) and measuring instrument adapter for testo 300 (0554 1203)
Soft-case style Instrument bag (0516 3001)
