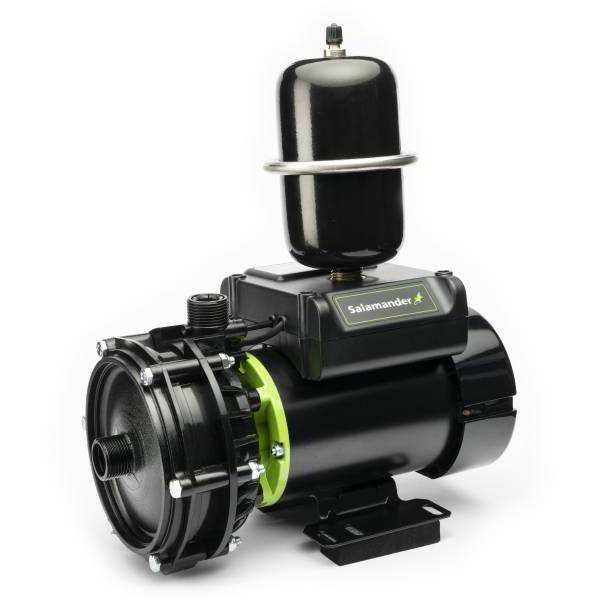

Salamander 2.4 Bar Single Universal

Part Number: SM32.0050

£395.01
Ex VAT
£474.01
Inc VAT
£395.01
Ex VAT
£474.01
Inc VAT
9 in stock for next day delivery in our central warehouse.
Salamander 2.4 Bar Single Universal

This premium 2.4 bar single ended pump will quietly and efficiently boost the hot or cold water supplies to your shower, wash basin, bath and kitchen taps in a negative head or positive head gravity fed installation.

For maintained pressure at higher flow rates, you need one of our Right Pumps. The centrifugal impeller means these pumps offer an extra boost, and are quiet with it.

  • Quiet - only 52dBA*
  • Patented technology
  • AV couplers included
  • Continuously rated motor - runs as long as it needs to
  • This product was formerly known as ESP80 CPV.
  • The RP80SU pump is a 2.4 bar single centrifugal shower pump suitable for boosting hot or cold water performance in a gravity fed, negative or positive head system. This pump can be used with a variety of applications, including a single wash basin, bath and kitchen taps. It is also suitable for hot water to showers or mixers when the cold is from the mains water. AV couplers with isolating valves are included.

Guarantee

3 years

WRAS Approval

1810090

Pump Type

Centrifugal

Noise

52dBA*

Mechanical Seal

Nitrile/Carbon/Ceramic

Anti-vibration feet

Yes

Inlet isolators

Yes

Flexible Hoses

2

Pressure @ closed head

2.4 bar

Pressure @ 8lpm

2.3 bar

Pressure @ 16lpm

2.1 bar

Maximum water Temperature

65°C

Pump connections

3/4" BSP

Pressure vessel air pre-charge

18 psi

Hose connections (UK model)

3/4" female x 22 mm push-fit x 280 mm long, isolating valves on all hoses

Hose connections (ROI model)

3/4" female x 21mm push-fit x 280 mm long, isolating valves on all hoses

Motor type

A.C Induction

Motor duty rating

Continuously rated

Power supply

230V

Current (full load)

1.75 amps

Power consumption

400 watts

Fuse rating

3 Amps

Power cable (pre-wired)

1.5 metres

Enclosure protection (IP rating)

IPX2

Length

273 mm

Width

148 mm

Height (Excluding hoses)

317 mm

Weight (Excluding hoses)

6.69 kg

Technical Specifications

Manufacturer Part Number RP80SU
