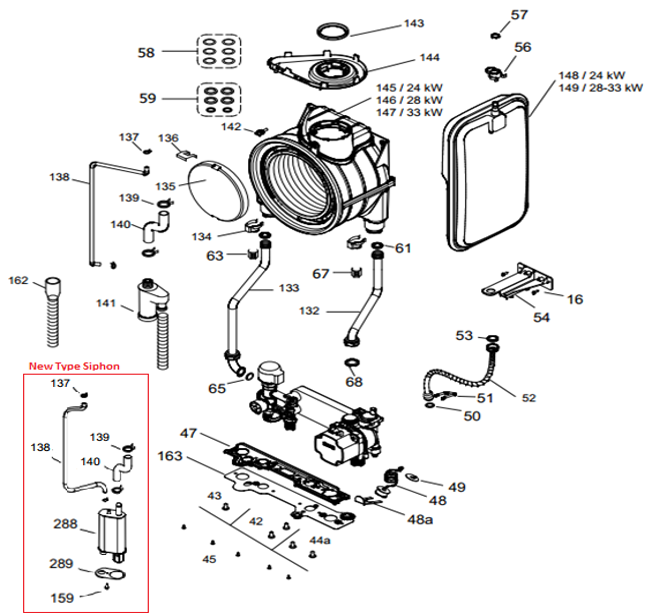

| View No |
Part Code |
Part Name |
| 16 |
15311019000004 |
Flat Nose Bolt 4,2x7,5mm (Black) |
| 42 |
15311019000032 |
M5x10 Screw |
| 43 |
15311019000034 |
M5x15 Screw |
| 44a |
15311019000092 |
Pump Screw H60x13 EJOT |
| 45 |
15311019000049 |
4,2X9,5 Screw |
| 48 |
15311011000006 |
Manometer |
| 48a |
15311019000029 |
Manometer Connection Clip |
| 49 |
15311006000047 |
Manometer Gasket |
| 50 |
15311009000012 |
Expansion Vessel Flex O-ring 14x3 |
| 51 |
15311009000008 |
Expansion Vessel Clip 3x20x32 |
| 52 |
15311018000010 |
Expansion Vessel Flex Pipe 3/8'' 21cm |
| 53 |
15311019000010 |
Expansion Vessel Outlet Gasket (3/8"-14,5x9x1,5mm) |
| 54 |
15311016000014 |
Expansion Vessel Bottom Fitting |
| 56 |
15311016000012 |
Expansion Vessel Fitting |
| 57 |
15311019000007 |
R 1/4 Lock Nut |
| 58 |
15211001000022 |
O-Ring Group (24-28-33kW) |
| 59 |
15211001000021 |
Gasket Group (24-28-33kW) |
| 61 |
15311019000016 |
Heat Exchanger O-Ring 17,86x2,62mm |
| 63 |
15311011000002 |
CH-Flow+Limit Sensor Duplex NTC |
| 65 |
15311019000009 |
Connection Gasket |
| 67 |
15311011000004 |
CH Return Sensor NTC |
| 68 |
15311019000008 |
Klingerite Gasket (1 "- 30x21x2mm) |
| 132 |
15311018000007 |
CH Return Pipe (Condens.) |
| 133 |
15311018000005 |
CH Flow Pipe (Condens.) |
| 134 |
15311018000003 |
Pipe Connection Clip (Condens.) |
| 137 |
15311019000054 |
Condensation Pan Clamp |
| 139 |
15311019000001 |
Heat Exc. Condensation Hose Clamp |
| 141 |
15311004000001 |
Condensation Siphon |
| 142 |
15311011000005 |
NTC-Flue Sensor |
| 143 |
15311019000018 |
Flue Adapter Gasket |
| 144 |
15311016000006 |
Condensation Pan |
| 145 |
15311024000012 |
Heat Exchanger 24kW (Condens.) |
| 146 |
15311024000003 |
Heat Exchanger 28kW (Condens.) |
| 148 |
15311023000004 |
8 Lt. Expansion Vessel |
| 149 |
15311023000002 |
10 Lt. Expansion Vessel |
| 159 |
15311019000058 |
Screw |
| 288 |
15311004000003 |
WH Condensation Siphon |
| 289 |
15311006000062 |
Siphon Lower Insulation |
