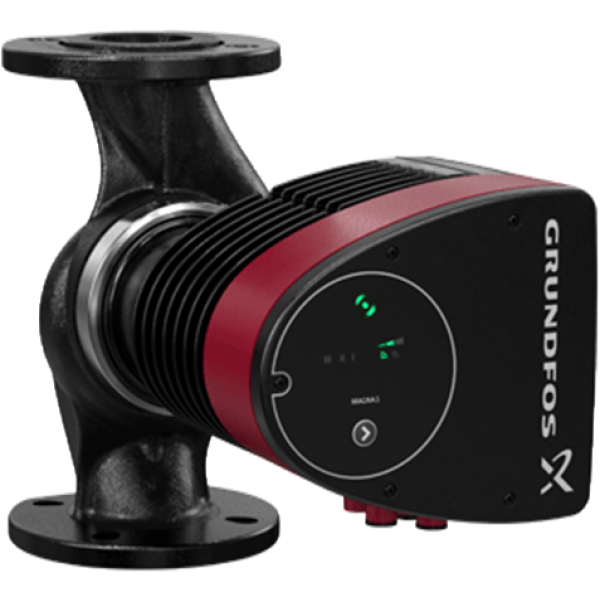

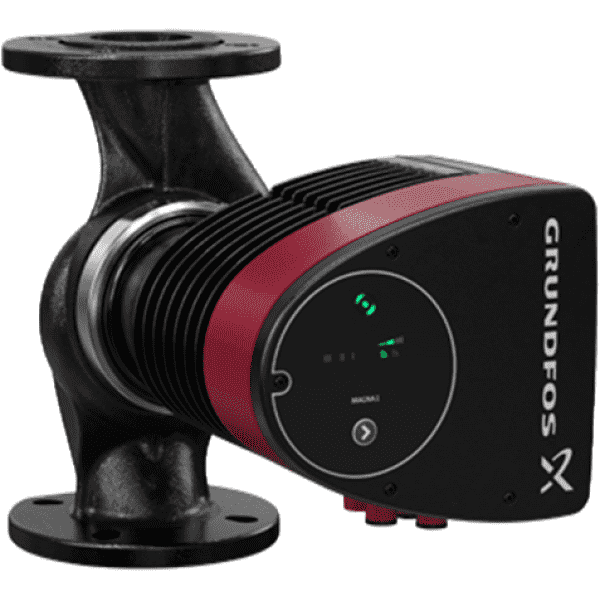

Grundfos Magna1 180 25-40

Grundfos Magna1 25-40 180

This pump is of the canned-rotor type. This means that the pump and motor form an integral unit without shaft seal and with only two gaskets for sealing.

Features and Benefits:

• A pump with no maintenance requirements
• Designed for ciculating liquids in a heating system but also suitable for hot water systems
• Simple installation
• safe selection
• Cast iron pump housing
• Low energy consumption
• Low noise level
• Liquid temperature range: -10°C to 110°C
• Range of ambient temperature: 0°C to 40°C
• Maximum operating pressure: 10 Bar
• Pipe connection: G 1 1/2"

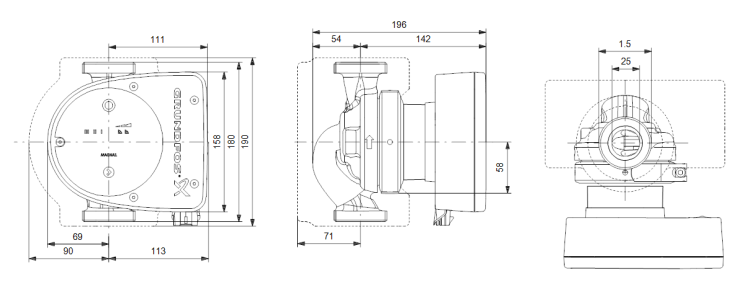

Technical Images

Technical Specifications

Manufacturer Part Number

99221216

Frequently Asked Questions

No Product FAQs available.

Documents

• Magna1 25-40 180 - H034899 Installation Diagrams (4.22 MB)
• Magna1 25-40 180 - H034899 Installation and User Guide (396.18 KB)
