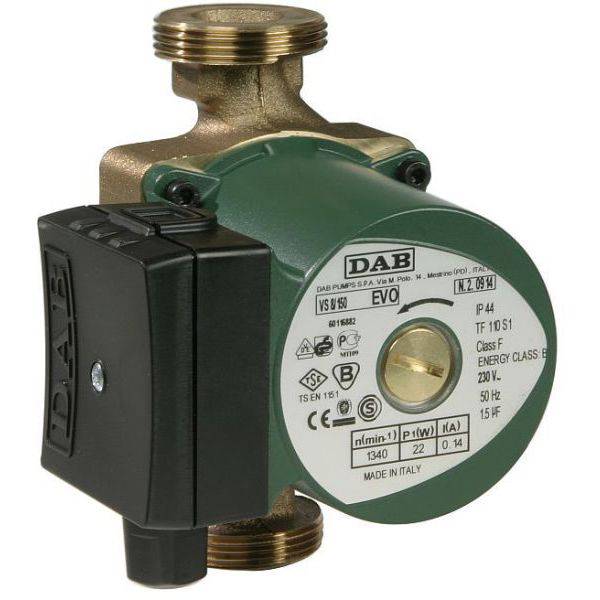

DAB Evo VS65/150B Circulator Pump

DAB Evo VS65/150B Circulator Pump

If you're looking for a hot water circulating pump for a domestic hot water system, the DAB Evo VS65/150B is perfect for you.

Features and Benefits:

• Fixed Speed
• Bronze Body
• Hot Water
• Circulator Pump
• Diecast Aluminium Motor Casing
• Technopolymer Impeller
• Ceramic Driving Shaft Mounted on Graphite Brushings Lubricated by the Pumped Liquid Itself
• Stainless Steel Protective Rotor Sleeve, Stator Sleeve and Closing Flange
• Ceramic Thrust Bearing, E.P.D.M. “O” Rings
• The Two-Pole or Four-Pole Asynchronous Motor with Wet Rotor is Self-Protected for Resistance
• No Overload Protection Required
• Protection Level: IP 44 Insulation class: F Cable Grommet: PG 11 Installation: with Horizontal Motor Shaft
• Working Voltage: Single-Phase 230 V / 50 Hz
• 2.6kg
• Size: 150 x 135 x 185mm (HWD)
• 3 Year Manufacturer's Guarantee
